Most people who call us about a rear extension or a terrace door want the same two things. In July they want the back of the house to open up. In January they want that same wall of glass to feel like a wall, not a draft. A standard sliding door usually manages the first and fails the second. That gap is where lift and slide doors in NYC projects earn their place: garden-level extensions in Brooklyn, setback terraces in Manhattan, roof decks in every borough.

This article covers how the mechanism works, which panel layouts suit which openings, and the two details that cause the most trouble on site: the threshold and the drainage. Those two get decided by the architect and builder long before the door arrives, so it pays to understand them early.

Why a regular slider struggles with big glass

A conventional sliding door is built to slide all the time. The panel sits on rollers and runs against brush seals or light gaskets, because anything tighter would stop it moving. That is the compromise. The seal is never fully closed. Wind finds the gaps, street noise comes through, and as panels get larger and heavier the rollers wear and the door gets harder to push.

Folding doors attack the opening problem a different way, but they bring a frame and a set of hinges at every panel, and every one of those joints has to seal. On a big elevation that is a lot of joints.

A lift and slide door separates the two jobs. Moving and sealing happen in two different positions, and the handle switches between them.

How the lift and slide mechanism works

Turn the handle and the panel lifts a few millimetres off its seals onto a carriage. Now it rides on rollers along the track without dragging on anything, so a large, heavy glass panel moves with one hand. Slide it to where you want it and turn the handle back. The panel lowers onto its seals and stays there.

What closed actually means

When the panel drops, it compresses a continuous seal on all four sides. In that position the door behaves much more like a fixed window than a slider. That is why a lift and slide door gives better air-tightness and noise performance than a conventional slider. On a terrace above a busy avenue, or a rear extension that backs onto other people's yards and air conditioners, you notice the difference the first evening.

Why panel weight stops being your problem

Because the panel is lifted onto a carriage instead of being shoved along against its seals, the weight matters far less to the person using it. That lets you put heavier glass into a big panel (triple glazing, acoustic laminate, security laminate) without turning the door into a two-person job. The limit becomes the rating of the hardware, not your arm.

It also means you can leave a panel partly open. Turn the handle down with the door a hand's width ajar and it stays exactly there, which is useful for ventilation on a mild night.

You can see the configurations and options we build on our lift and slide doors page.

Where lift and slide doors fit in NYC buildings

These are the jobs we see most often:

Rear extensions on brownstones and townhouses. A new kitchen or family room at garden level opening onto the yard. Two or three panels across the rear elevation is the most common setup we build.

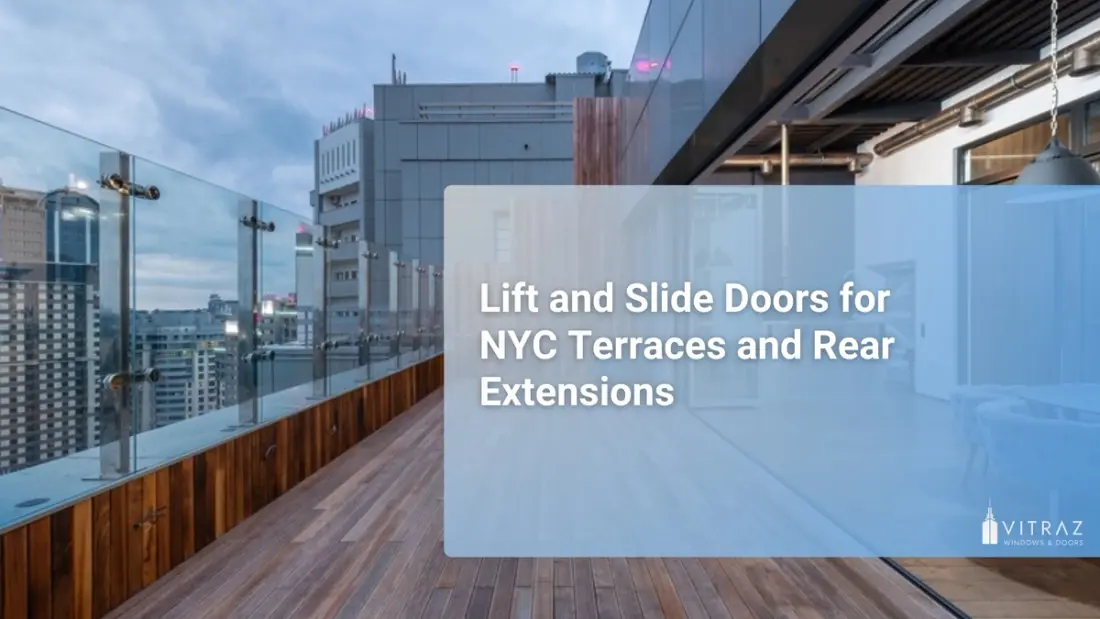

Setback and roof terraces. Top-floor apartments where the terrace is half the reason someone bought the place. Wind exposure matters more up here, and so does the waterproofing below the door.
Balconies in multi-family buildings. In a tight living room, a panel that slides instead of swinging gives back floor space.
Hotels and hospitality. Guest room balconies, restaurant and bar terraces.
Pool houses and waterfront homes outside the city, on Long Island and in Connecticut.

One thing that applies to almost every city job: the opening is not square. A brownstone back wall that has been settling for a hundred years will not give you true corners. We build every frame to the measured opening rather than to a catalog size. For a sliding door this matters more than for a window. If a frame gets forced into an out-of-square hole, the track ends up out of level, the panels drift or bind, and the seals meet unevenly. A frame made to the real opening and set level by a good installer runs the way it should.

Panel configurations

The layout comes down to how wide the opening is, how much of it you want clear, and where the open panels can go. The main options:

Fixed plus sliding. One fixed panel and one sliding panel. The simplest layout, and the one most people picture. You get roughly half the width open.
Two panels. Common on narrower rear extensions and balconies.
Three panels. A good fit for a wider rear elevation. Depending on the track arrangement, the panels can stack together to one side to give a wider clear opening.
Four panels. Usually for wide elevations. A typical arrangement is two outer panels and two center panels that part in the middle, so the opening sits centered on the room.
Pocket. The sliding panels disappear into a cavity in the wall, so the whole opening is clear and there is no stack of glass left in view. This has to be planned early. The wall has to be built deep enough to take the panels, and the pocket has to allow the panels to be serviced later.
Corner opening. Two runs of panels meet at a corner with no post. Open both and the corner of the room is gone. The structure above has to carry its load without that post, so your engineer needs to be involved from the start.

Two-track or three-track

The system we use comes in 2-track and 3-track versions. Each track carries panels that can pass the ones on the other tracks. More tracks means more panels can stack behind each other, which means a larger share of the opening can be cleared. The trade-off is a deeper frame and a wider sill. On a modest opening, two tracks is usually plenty. On a wide rear elevation where you want most of it open, a third track starts to make sense.

Fixed panels are not a compromise

A fixed panel sits in the same frame and uses the same profile, so the elevation still reads as one piece of glass. It has fewer moving parts, and it gives you a stable side to put a sofa or a dining table against. Plenty of good layouts keep one or two panels fixed on purpose.

What the system data says

Our lift and slide doors are built on the Aluprof MB-59HS system. These are the manufacturer's published figures:

Maximum leaf height up to 2.8 m
Maximum leaf width up to 3.3 m
Maximum leaf weight up to 300 kg
Glazing up to 42 mm
Airtightness Class 3
Watertightness Class 9A / 600 Pa
Wind resistance Class C3
ST and HI variants, in 2-track and 3-track versions

Treat these as system data from testing, not a promise for a particular door. Real whole-door performance depends on the size, the glass, the configuration, the hardware, the site, and how the door is installed. The full figures and documents are on the MB-59HS system page.

A note on maximum sizes. They are set mostly by the hardware, not the aluminum. If your opening wants panels bigger than the limits above, the answer is usually more panels or a different arrangement, and that is a decision to make at drawing stage, not after the steel is in. For a very exposed terrace high up, your engineer should confirm the wind loads for the actual location.

Thresholds: flush or step-over

Nearly everyone asks for a flush threshold. It looks clean, nobody trips, and inside and outside feel like one floor. It is possible, but only where the interior floor and the terrace or deck can sit at the same level, and it has to be designed in.

Step-over sill

The frame sits on the structural floor with a low upstand at the sill. You step over a small lip. This is the most forgiving detail for water, because the upstand gives wind-driven rain one more thing to climb before it gets in. It is also the simplest for the installer.

Flush or recessed sill

The frame is sunk into the floor so the finished floor runs level with the track. To get this, there needs to be a recess in the slab or subfloor to take the frame, and that recess has to be known before the slab is poured or the finished floor goes down. Outside, the terrace surface has to come up to the same level, which means water arriving at the door line has to be handled right there.

Roof terraces are the hard case

On a roof terrace there is a waterproofing membrane under everything, and roofers want that membrane turned up well behind the sill. That works against a level floor. The usual way through is to keep the membrane low and build the walking surface up on pedestal pavers, so the paver surface sits level with the door while water drains underneath them. It works, but the architect, the roofer and the builder have to agree the build-up before anyone orders the door.

Rear extensions at garden level

These are often easier. Many yards sit a step below the extension floor anyway. You can keep the threshold flush on the inside and take the step down a short distance outside the door, where it does no harm.

Drainage: where the water goes

Every sliding door track will see some water. The question is not whether it gets wet but how the water leaves. A good drainage plan has four parts.

Drainage in the frame. The sill is designed to collect water and send it back outside. Those drainage outlets must stay open. Mortar, sealant or a paver laid tight against the frame can block them, and then the track fills.
The surface outside the door. The terrace or patio should fall away from the door, never toward it. With a flush threshold, a linear drain or grated channel right in front of the sill catches what runs toward the door and what wind pushes against it.
What is under the frame. The waterproofing or sill pan under the door has to lap correctly with the wall and floor membranes, so any water that gets past the frame is led back out instead of into the structure.
What is above the door. A canopy, a deep reveal or a covered terrace cuts down how much rain hits the sill in the first place.

Our part is the frame and its details: sections, drainage points and the information the installer needs. The interface with the floor, the membrane and the terrace is detailed with your builder and architect. Get that conversation going before the slab, not after delivery.

Glass, finishes and hardware

The glass is specified per opening. Options include double or triple glazing, Low-E coatings, argon fill, warm-edge spacers, acoustic laminates for noisy elevations and security laminates. This system takes glazing up to 42 mm. Triple glazing costs more, so we usually talk through whether a given door actually needs it.

Finishes are powder coat in a wide RAL range, anodised, or a different color inside and out. A dark bronze or black outside with a warm white inside is a popular choice on rear extensions. A non-standard RAL color usually does not move the price much.

Multi-point locking is standard on every exterior unit we build. Handles can match or contrast the frame.

If you are also replacing windows or the front door, order them together. Everything comes off the same floor on the same finishes, so the lift and slide door, the windows and the entry door match exactly.

Pairing a terrace door with a pergola

On roof terraces especially, a lift and slide door often comes with a request for shade. We fabricate engineered louvered pergolas on the MB-OpenSky 140 system, sized to the terrace and finished to match the doors and windows. The blades rotate from full shade to open sky and close to shed rain. Water runs through the blades into the beams and out through the posts, so a pergola covering the door line also takes rain load off the threshold you worked so hard on. Pergolas are supplied through the deck builder, landscape designer or contractor on the project, and we will not go around them.

How we build them and what we need from you

Everything is cut, machined, assembled and glazed in our Brooklyn shop. Doors leave the shop glazed, finished, labelled by opening and ready for the installer, with the technical detail they need. Lead times are typically 2 to 6 weeks, sometimes as fast as 2 to 3 weeks, against 10 to 12 weeks or more for imported units. Because the shop is local, changes are handled in days rather than months.

We fabricate and supply. Your contractor or glazier installs. If you need someone, we can refer installers who know these systems. With panels that can weigh up to 300 kg each, the installer should plan the handling and the route into the building early, whether that is through the house or over the top.

To quote accurately, send us:

The rough opening widths and heights, or drawings if you have them
Photos of the opening, straight on and from the side
Which floor it is on and what is outside (yard, deck, roof terrace)
Whether you want a flush threshold, and what the floor and terrace build-up looks like
Your preference on glass and finish, if you have one

Every quote states the glazing build-up and the thermal performance, so you know what you are buying before anything is cut.

Frequently asked questions

Is a lift and slide door worth it over a regular slider?

If the opening is large or the door faces wind or noise, usually yes. The panel seals on all four sides when closed, which gives better air-tightness and noise performance than a conventional slider. Big, heavy panels also stay easy to move because they ride on a carriage instead of dragging on their seals.

Can I get a completely flush threshold?

Often, yes, where the inside floor and the outside surface can sit at the same level. It needs a recess in the floor that is planned before the slab or finished floor goes down, plus proper drainage right outside the door. On roof terraces it also has to be agreed with the roofer.

How big can a single panel be?

The MB-59HS system data lists leaf heights up to 2.8 m, widths up to 3.3 m and weights up to 300 kg. Those are system maximums, set mostly by the hardware. If your opening needs more, we look at adding panels or changing the layout at drawing stage.

Do you install the doors?

No. We fabricate and supply, and your contractor or glazier installs. We deliver the doors glazed, finished and labelled by opening with the technical detail the installer needs, and we can refer installers who know these systems.

Can the door match my new windows?

Yes. When doors and windows are ordered together they come off the same floor on the same profiles and finishes, so the colors and details match. That includes dual-color frames with one finish outside and another inside.

Talk to us about your opening

If you are planning a rear extension, a terrace or a balcony, send us the opening early, ideally before the floor and waterproofing are fixed. We will tell you which layout fits, what the threshold and drainage need, and what it will cost to build. Call (917) 418-0816, Monday to Friday, 9am to 4pm, or get a free quote. No pressure. Just honest guidance.
